Description

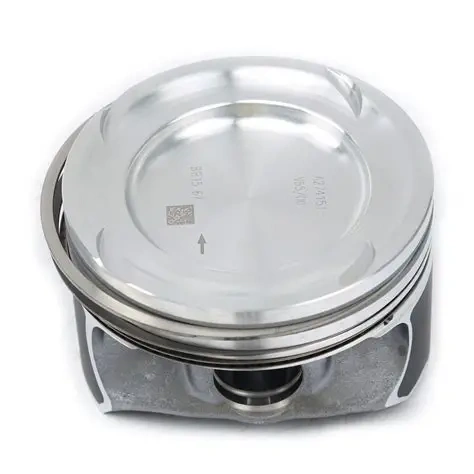

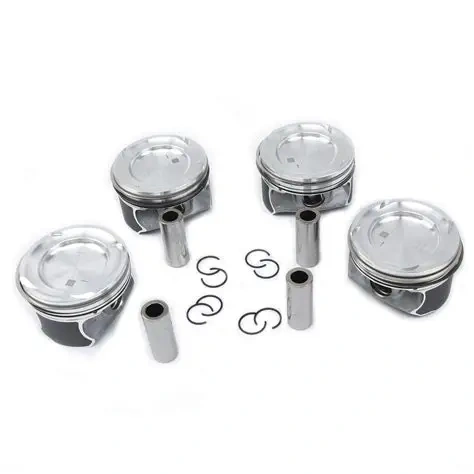

This part is the original factory piston designed and manufactured by Mercedes-Benz for the M274 series engines. The M274 engine is a four-cylinder turbocharged engine that has been widely used by Mercedes-Benz in recent years. It is renowned for its high efficiency and reliability and is equipped in many models such as the C-Class (W205), E-Class (W213), and GLC (X253).
Core design and engineering objectives
The core design of this piston is to achieve lightweight, high strength, low friction and excellent heat dissipation in the harsh environment of high burst pressure and high temperature brought by turbocharging, to ensure the engine's power output, fuel economy and long-term durability.
Detailed technical and material properties
Main material and manufacturing process
Material: Made of high-strength eutectic aluminum alloy through precision casting process. This aluminium alloy contains approximately 12% Silicon, which endows it with a low coefficient of thermal expansion, high wear resistance and excellent high-temperature strength, enabling it to withstand the high loads of turbocharged engines.
Lightweight design: The internal structure has undergone topological optimization, with excess materials removed from non-critical parts and reinforcing ribs installed. This achieves the maximum degree of lightweight while ensuring absolute strength, which helps to reduce reciprocating inertial forces and enhance the engine's speed response and smoothness.
Key strengthening processes (core technologies)
The first ring groove austenitic cast iron insert ring: This is the most crucial technology. The piston was pressed into a high-strength austenitic cast iron ring at the first gas ring groove, which was the hottest and had the highest mechanical load. This greatly enhances the wear resistance of the ring groove, preventing it from being "impacted and worn" by the piston rings under high temperature and high pressure. It is the cornerstone for ensuring that the engine does not leak air or burn oil throughout its entire life cycle.
Piston skirt coating: The piston skirt (the part in contact with the cylinder wall) is coated with a low coefficient of friction graphite coating. This coating can:
Significantly reduce wear during cold starts.
Reduce frictional resistance during operation and improve fuel economy.
Improve the running-in performance.
Cooling design
Oil oscillation cooling oil passage: The piston is designed with hollow cooling oil passages inside. Through a dedicated fuel injector, engine oil is directly sprayed into this small oil passage. When the piston moves back and forth, the engine oil "oscillates" in the oil passage, which can efficiently carry away the heat at the top of the piston. This is a key design to prevent common problems in turbocharged engines - overheating of the piston top, knocking and even melting of the top.
Piston top surface design
The shape of the combustion bowl: The concave shape at the top (combustion bowl) has been precisely calculated and optimized through fluid dynamics simulation, matching the shape of the fuel jet of the fuel injector and the intake airflow. It aims to promote the mixing of oil and gas, form an efficient rolling flow, achieve complete and clean combustion, and optimize the anti-knock performance.
Applicable models
This piston is specially designed for a specific version of the M274 engine (such as the M274920). It should be noted that the M274 engine has different tuned versions (such as M274, M274 DEH16 LA, etc.), and there may be minor improvements due to the year of production.
