Description
Main functions

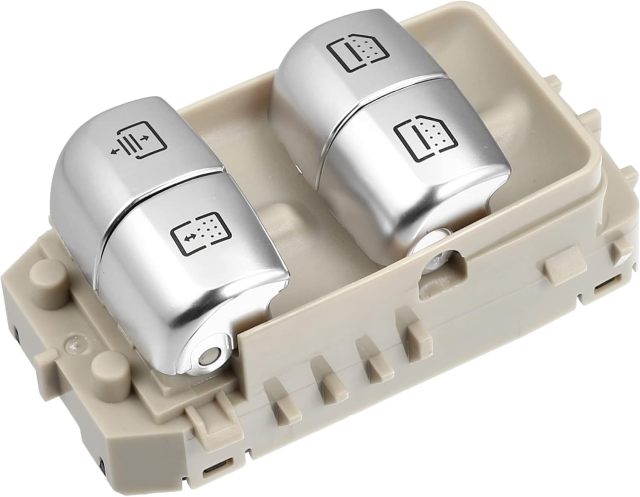

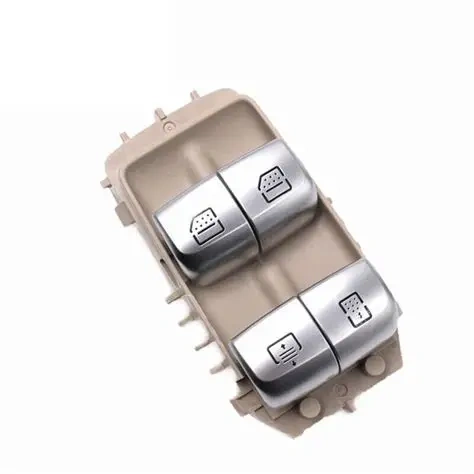

Control the left rear window: It offers point-by-point lifting and one-button automatic lifting (with anti-pinch function).
Rear window lock: An additional button is integrated on the switch to activate or disable the control of all rear Windows (child safety lock).
Central locking control (configuration on some models) : It may integrate the central locking switch of this door.
Design concept: Adopt a smooth and simple design consistent with the interior style of platforms such as the Mercedes-Benz W213 (E-Class) and W222 (S-Class). The surface treatment is mostly high-gloss black, metallic paint or chrome plating, which blends perfectly with the interior panels of the car doors.
Ii. Technical Specifications and Material Composition
This is a mechatronic component, with complex and precise materials and structure.
External housing and keys:
Material: Mainly high-strength ABS/PC engineering plastics are used to ensure durability and scratch resistance.
Surface treatment
Base: Usually Piano Black or dark metallic paint, with high gloss and fine touch.
Decorative strips: Plastic decorative strips made with vacuum chrome plating process enhance the sense of luxury.
Key ICONS: Utilizing light-transmitting laser engraving technology to ensure uniform and soft backlight.
Internal structure and electronic components:
Circuit board (PCB) : A printed circuit board made of FR-4 material, integrating a microprocessor and circuits, used to process switch signals and achieve intelligent functions such as one-click lifting.
Switch contacts: Usually gold-plated or silver-plated copper alloys are adopted to ensure excellent electrical conductivity and anti-oxidation ability, and to extend service life.
Backlight system: Equipped with built-in LED beads, it emits the standard white or ice white backlight of Mercedes-Benz, which is synchronized with the interior lighting system. The brightness often changes as the width indicator lights are turned on.
Connector: High-quality PA66 (nylon 66) material interface, with tin-plated or gold-plated copper terminals, ensuring reliability and corrosion resistance when connected to vehicle wiring harnesses.
Iii. Main Applicable Vehicle models
This part is mainly compatible with vehicle models based on the Mercedes-Benz rear-wheel drive/all-wheel drive (MRA) platform, especially the E-Class with the W213 code. It is strongly recommended to make the final confirmation through the vehicle's VIN code.
Common applicable vehicle models include:
All domestic and imported long-wheelbase/standard-wheelbase versions of Mercedes-Benz E-Class (W213) - E200, E300, E350, etc. (since 2016)
Mercedes-Benz E-Class Cabriolet (A238)
Mercedes-Benz S-Class (W222) - Some vintage models
Mercedes-Benz CLS-Class (C257)
